Hydrographic Survey

SonarMite portable DSP echo sounder

A portable and rugged “black box” hydrographic surveying equipment that extends the boundaries of shallow water hydrographic survey using Bluetooth (BT) technology with internal rechargeable battery for all day use in the field.

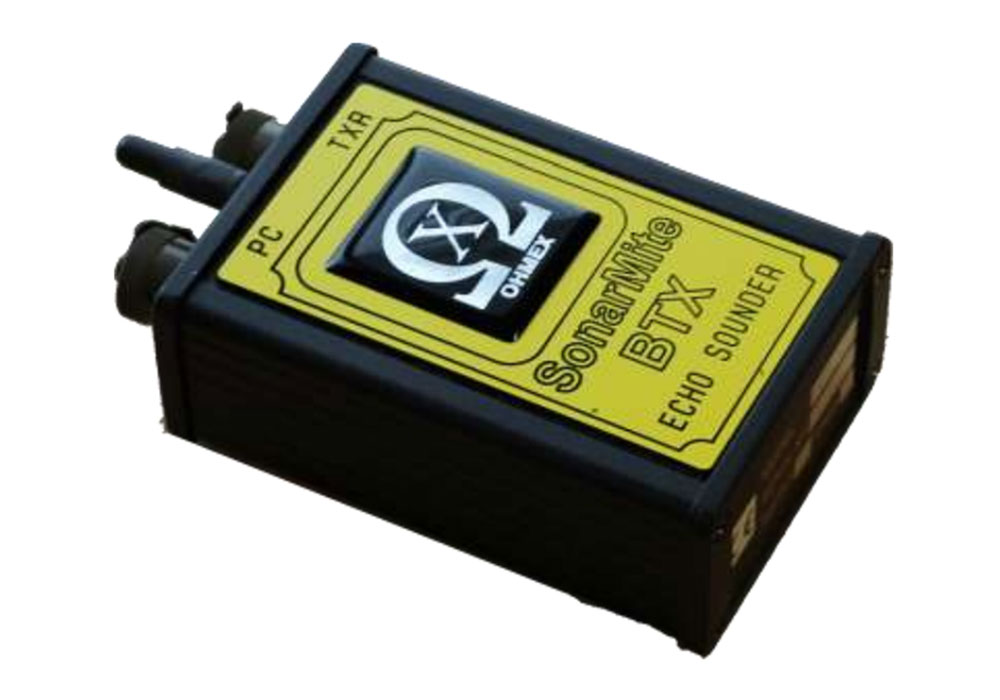

SonarMite Portable DSP Echo Sounder

Technical Specification

Transducer Frequency
Beam Spread
Depth Range
Accuracy
Sound Velocity Range
Data Output Range
Ultrasonic Ping Rate
Internal Power
Power Consumption
Usable Battery Life
Stand-By Battery Life
Battery Charger
Data Format
Operating Temperature
Overall Dimensions
Weight
235 kHz Active Transducer
8 to 10 Degrees
0.30m to 75.00m (Software limited)
+/-0.025m (RMS)
1400 to 1600 m/sec
2Hz
3 to 6 Hz (Depth dependent)
10.0v x 1.5AHr Internal Nickel Metal Hydride sealed battery (NiMh)
70ma to 120ma (temp dependent)
8Hrs to 12Hrs between charging
10000 Hours
90..250vac, 40..60Hz
RS232C 9600 baud 8 bit 1 stop bit No parity
Temperature 0 to 45 degree Centigrade
100w x 220h x 45d (mm)
0.75Kg

Hydrolite Pole Kit

A perfect partner for Sonarmite

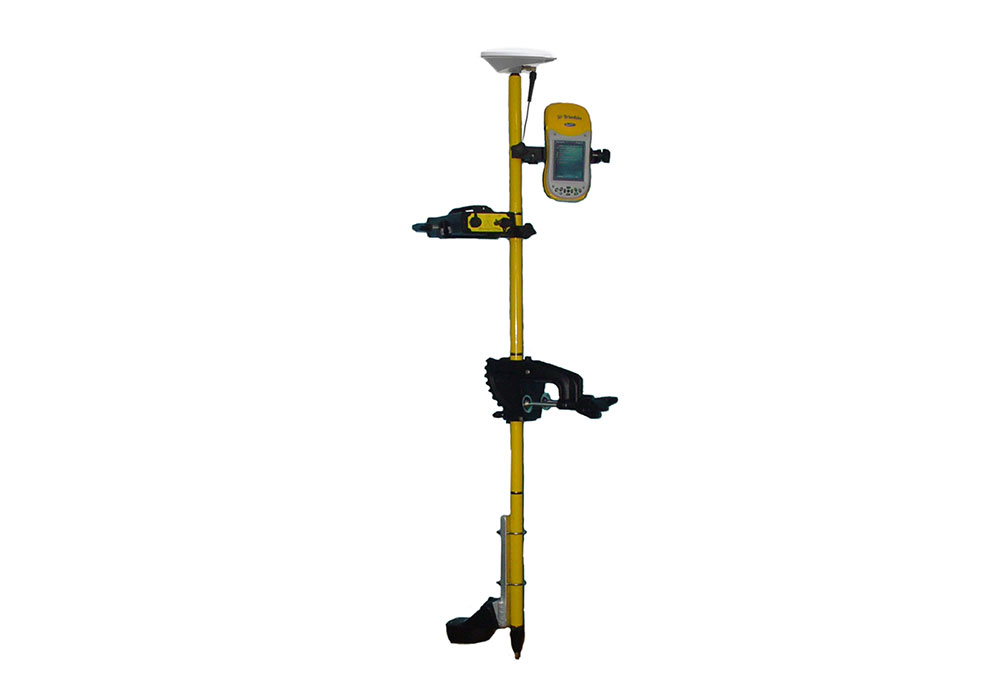

Assembled Pole Kit with Sonarmite & Submeter GPS

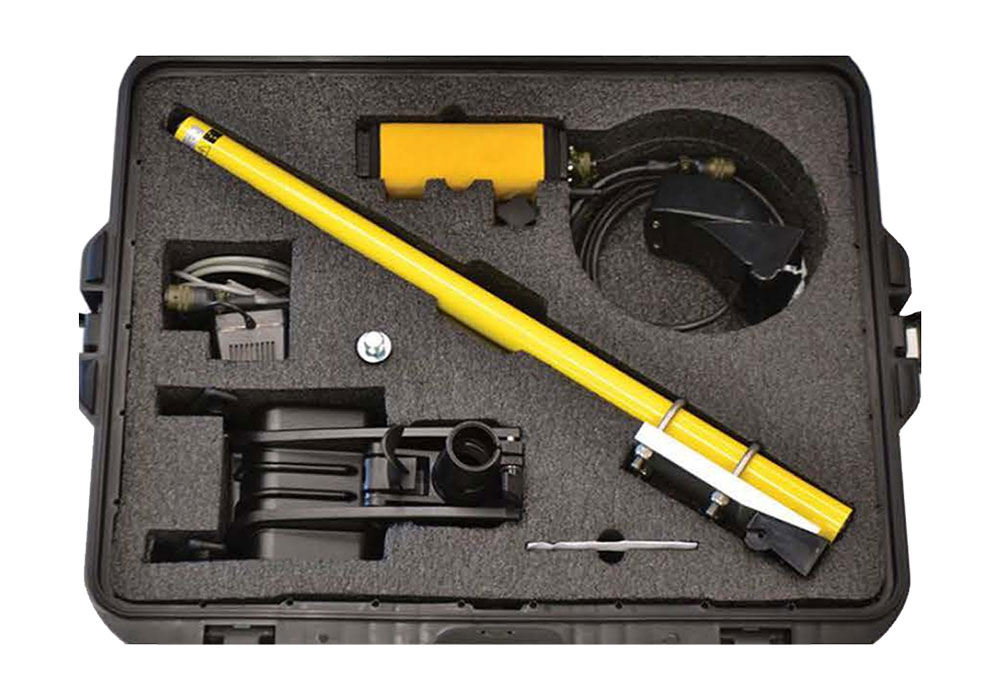

Pole Kit with Carrying Case

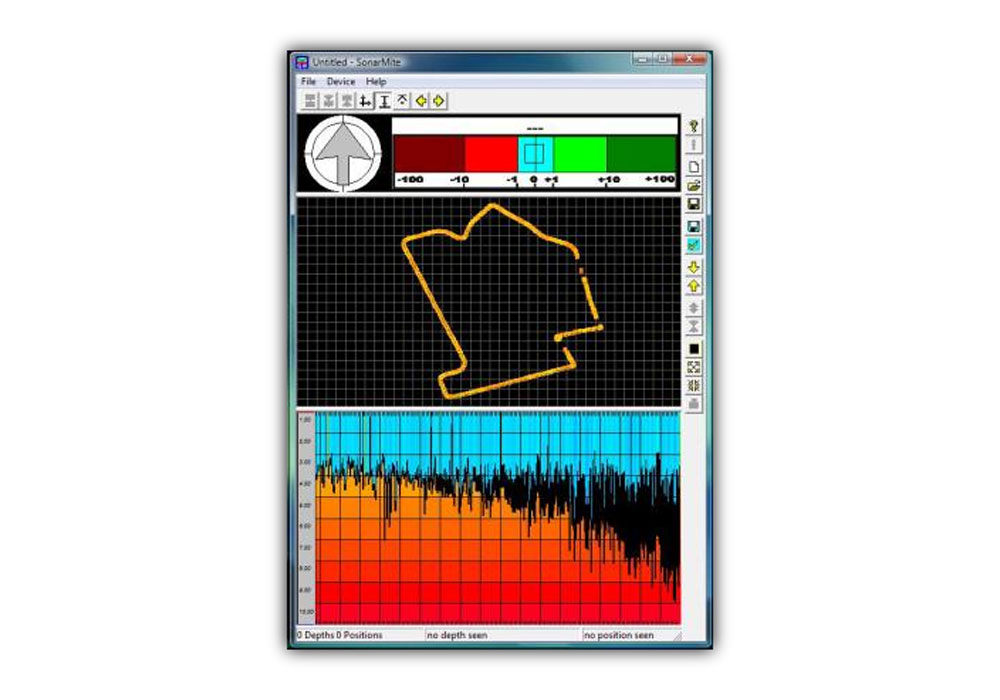

SonarMite Windows Tablet, Win 7, 8,10 & Mobile software

The SonarMite software is designed to run on a Windows PC or a Windows Mobile PDA to provide the user with a ‘front end’ to the SonarMite hardware device. In addition to enabling device settings the software will log and display SonarMite depth and GPS data values as a ‘Breadcrumb trail’.

TideM8: Modular Bluetooth Tide Gauge System

TideM8 is the current replacement for the popular TidaLite portable tide gauge. Using the latest low power processor and flash memory technology, the new design offers precise calendar and time keeping functions together with solid state data retention. The TideM8 is designed to interface directly to external displays or computers using serial communications with Bluetooth, the Ohmex Short and Long range radio telemetry modems and a range of dedicated LCDs for simple remote display of numeric data.

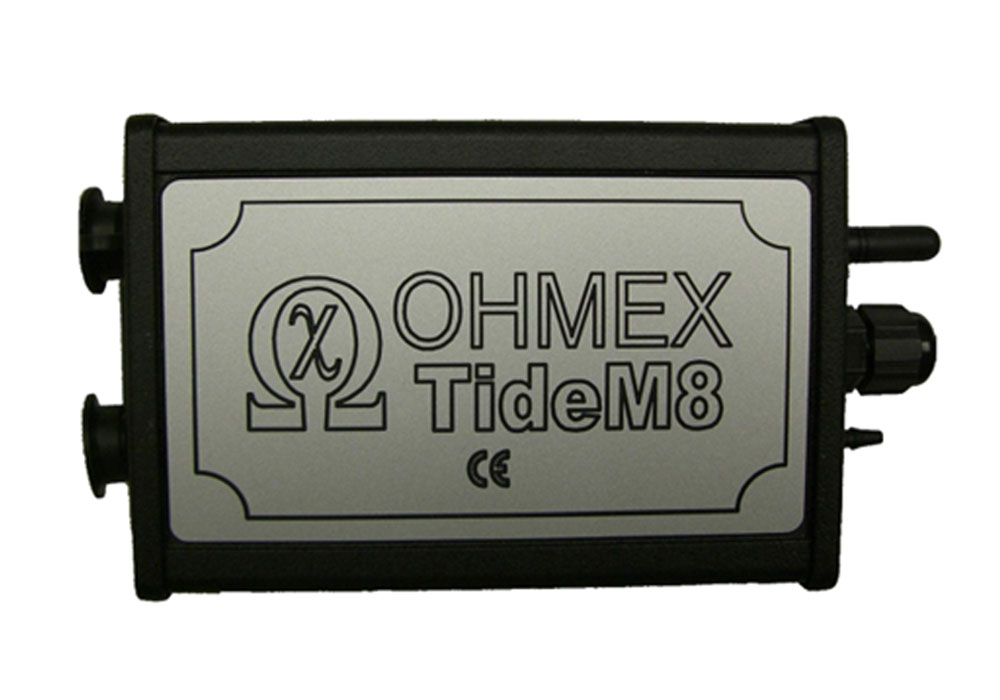

TIDEM8 Portable Tide Gauge

A typical TideM8 Installation Schematic

Technical Specification

Transducer Range
Depth Range
Accuracy
Measurement Frequency
Power Consumption
Power Source
Internal Memory
Data Format
Radio Format
Box Dimensions
Weight
Transducer Dimensions
Weight
0 to 1.0Bar
0.0m to 10.00m
+/-0.01m RMS
5 Hz
1ma to 20ma (Duty cycle dependent)
External 9 to 30 vDC
16 MByte Flash (10 years at 10 mins)
ASCII 9600 baud, 8 bit, 1 stop, no parity
ASCII Bluetooth
150w x 105h x 35d (mm)
1.0Kg
140 length x 31 dia (mm)
1.0Kg
